| 원래 장소: | 중국 |
| 브랜드 이름: | SINOTRUK SITRAK |
| 인증: | ISO/3C/BV/IFA/SGS |
| 모델 번호: | ZZ3317V386JB1R |
| 최소 주문 수량: | 1개 |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 대량 선박, 로로 선, 용기에 왁싱 |
| 배달 시간: | 영업일 기준 15일 |
| 공급 능력: | 달 당 10,000 단위 |
| 제품명: | 덤프트럭 | 모델: | ZZ3317V386JB1R |
|---|---|---|---|
| 드라이브 유형: | 6x4 | 택시: | HW76 고스트 페이스(슬리퍼 1개 포함), A/C |
| 엔진: | WP12.380E201 , 380마력 | 전염: | HW19710 (포워드들과 10명 2가 역으로 돌려집니다) |
| 강조하다: | SINOTRUK HOWO Ghost Face dump truck,380HP LHD tipper truck,6X4 white dump truck |
||

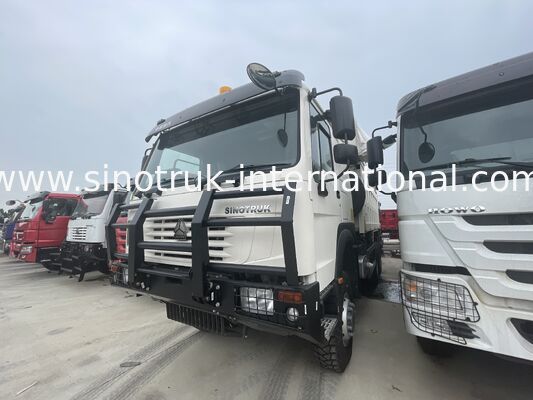

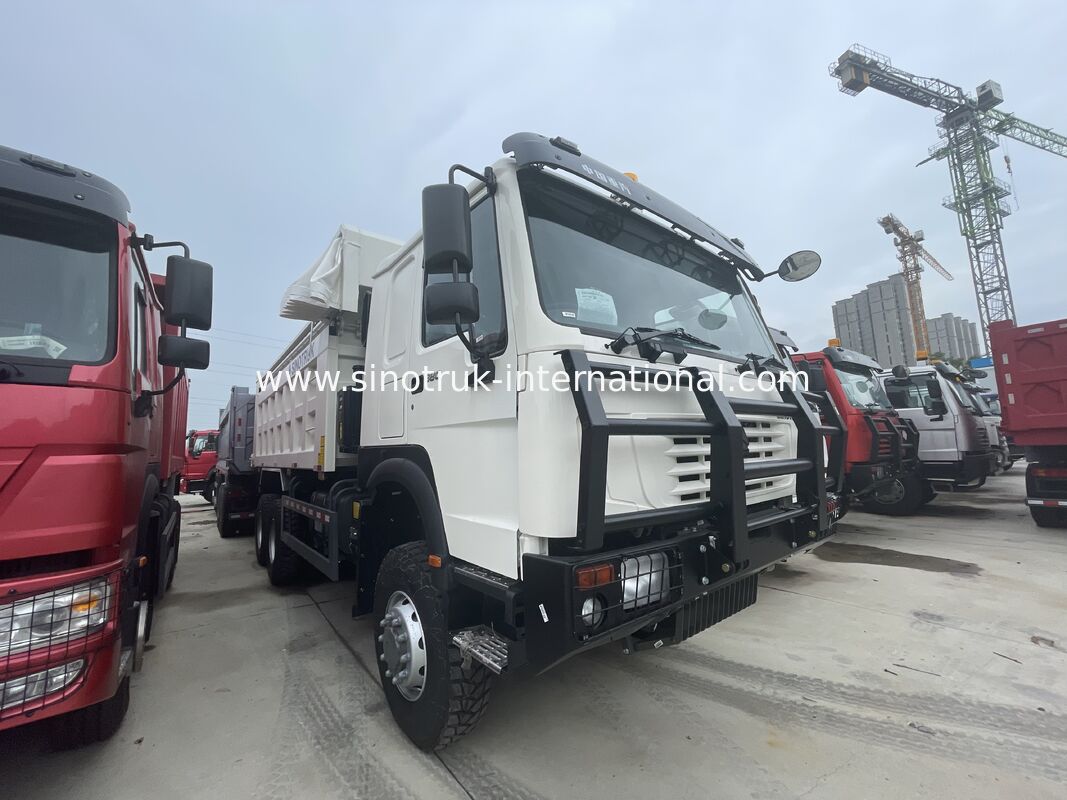

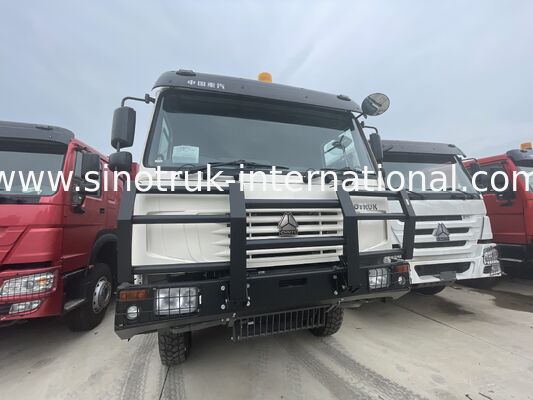

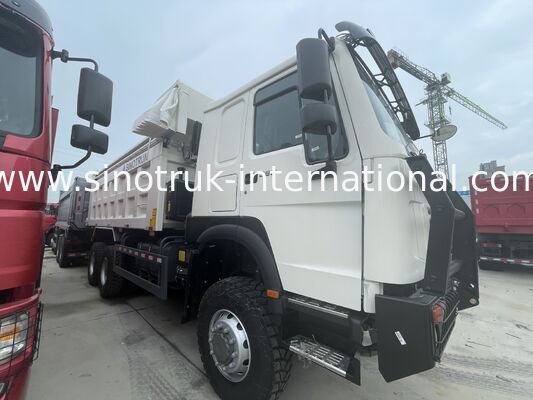

SINOTRUK HOWO Ghost Face Cab 380HP LHD Tipper Dump Truck 6X4
Description:
Tipper Truck SINOTRUK HOWO Front Lifting 30 - 40tons LHD 6X4 for Construction
This type product , with features of reliable structure , high loading capacity which can load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.
This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specifications:
| SINOTRUK HOWO 6x4 LHD Heavy Tipper Dump Trucks 380HP | ||||
| Model | ZZ3257V3847B1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | N76L(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×VGD95 ( 9.5 Tons) | |||
| Driving Axle | 2XMCX16ZG, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8550×2496×3450(mm) | |||
| Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12100(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
