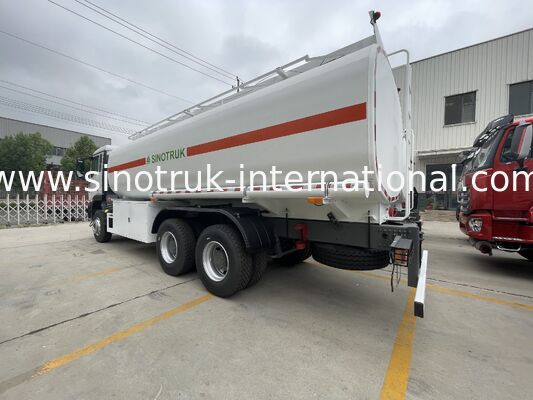

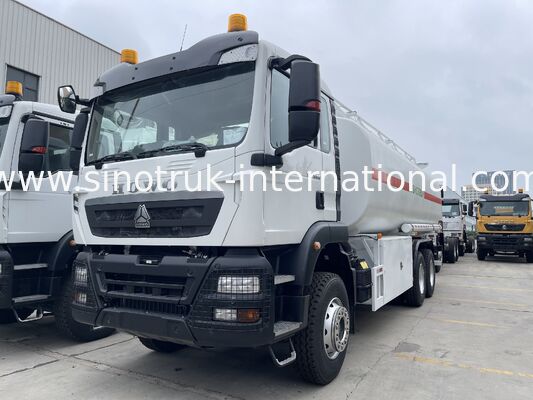

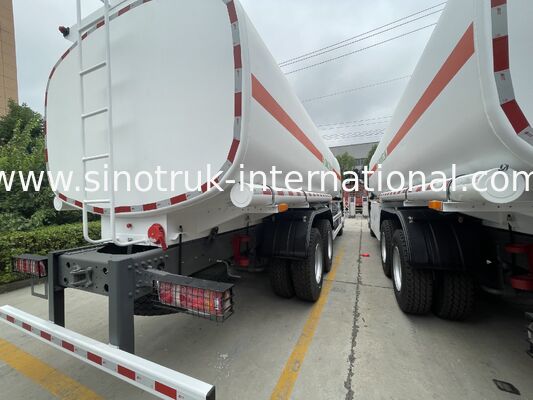

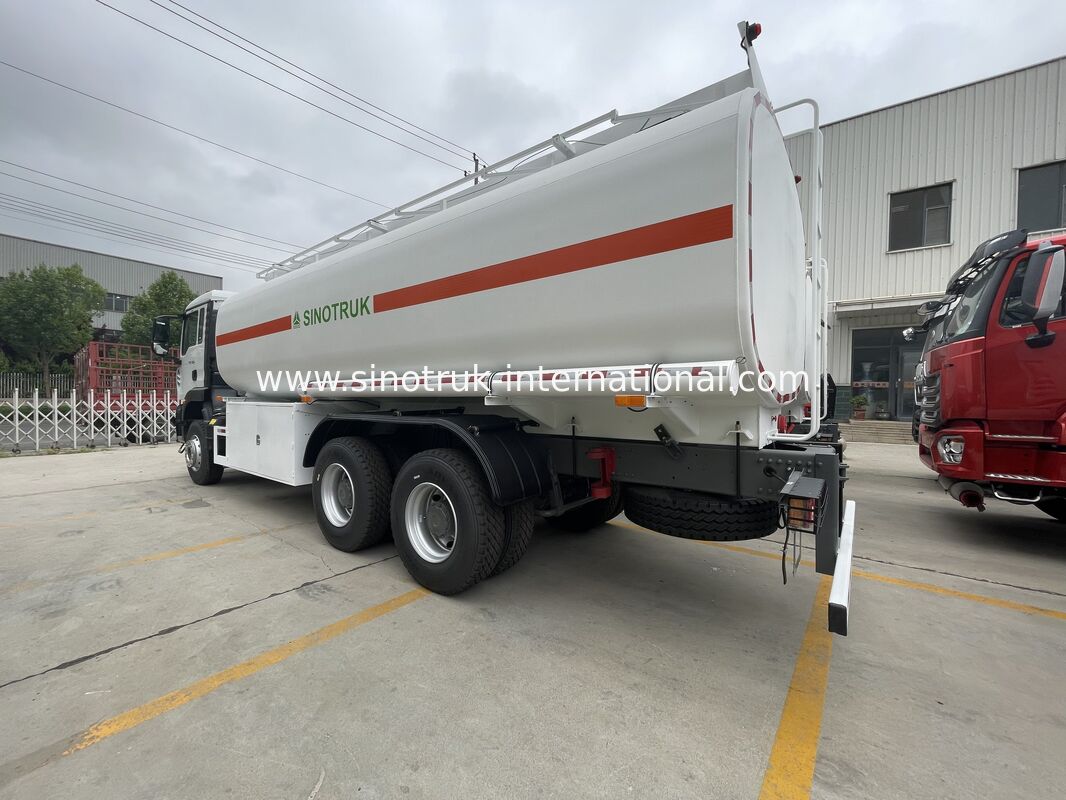

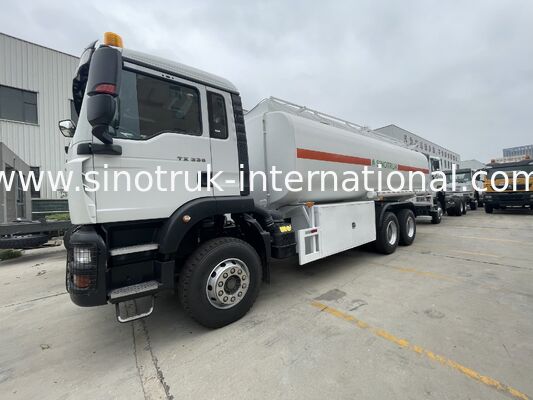

SINOTRUK TX Model 6X4 25CBM Oil Tank Truck 10Wheels 336Hp White Two Warning Lights

SINOTRUK TX Model 6X4 25CBM Oil Tank Truck 10Wheels 336Hp White Two Warning Lights

제품 상세 정보:
원래 장소: 중국
브랜드 이름: SINOTRUK
인증: ISO/3C/BV/IFA/SGS
모델 번호: ZZ1257V464GB1
결제 및 배송 조건:
최소 주문 수량: 1개
가격: 협상 가능
포장 세부 사항: 대량 선박, 로로 선, 용기에 왁싱
배달 시간: 영업일 10-30 일
공급 능력: 달 당 3,000 유닛
접촉
상세 제품 설명
모델: ZZ1257V464GB1 드라이브 유형: LHD 6X4
엔진: WD615.69.,336HP 탱크 바디 용량: 25CBM
택시: TX-F 전염: HW19710 (포워드들과 10명 2가 역으로 돌려집니다)
강조하다:

SINOTRUK TX 6X4 oil tank truck

,

25CBM oil tank truck with warning lights

,

336Hp oil tank truck 10 wheels

SINOTRUK TX Model 6X4 25CBM Oil Tank Truck 10Wheels 336Hp White Two Warning Lights


Description:


Tanker trucks (also known as distribution vehicles, oil transport vehicles, diesel vehicles, gasoline tanker trucks, crude oil tanker trucks, refueling tanker trucks, diesel tanker trucks, oil tanker trucks) are used to transport oil, diesel, gasoline, kerosene, etc. It can be divided into many compartments to transport different types of fuels, lubricants, crude oil, alcohol. The oil pump is equipped with pump in pump out function.


Our company adopts advanced butt welding technology to detect leakage after high pressure gas forming, so that the tank strength is high, the center of gravity is stable, and the vehicle is safe and stable; The tank body is treated by shot blasting after welding. The rust prevention and paint painting adopt advanced technology, durable and beautiful appearance.


Specification:


SINOTRUK TX Model 6X4 25CBM Oil Tank Truck 10Wheels 336Hp White Two Warning Lights
Chassis Model ZZ1167N461GB1
Drive Type 6×4
Engine WD615.69.,336HP
Cabin TX-F
Transmission HW19710(10 forwards & 2 reverses)
Front Axle VGD95 (1X9.5 Tons)
Driving Axle MCX16(2X16 Tons)
Clutch hydraulically operating with air assistance
Rim/ Tire 12.00R20, Radial tyre
Wheel base 4600(mm)
Capacity of tank body 16-20CBM
Thickness of tank body 5mm,With 5 cabin
Basic setup Gear oil pump, flow meter, flash hider, fire extinguisher
Overall dimension 8700×2500×3250mm
The curb weight 11940(Kg)
Gross weight 25000 kg
Max. speed 95km/h
Color White, red, green, golden and so on.


Applications:


Tank trucks are mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, lubricating oil and coal tar oil).


Competitive Advantage:


1) Our company adopts advanced butt welding technology for tank gas leakage detection after forming, so that the tank has the characteristics of high strength, stable center of gravity, safety and stability;

2) Shot blasting pretreatment process after melting can, rust prevention, paint using advanced technology, durable, beautiful appearance. Independent subposition,

3) Divided into different oil, chemicals, food and other liquid food vehicles, chemical liquid vehicles, thermal insulation liquid vehicles, dangerous goods transport vehicles, asphalt transport vehicles

4) The tank body external sandblasting treatment, internal anti-corrosion treatment, the outer surface of the advanced polyurethane paint, beautiful appearance

5) Front and rear high spray optional, water jet diffusion function, 360 degrees rotation, up and down 150 degrees tilt. Optional small flow pump, spray drum wake up garden trees and flowers to kill insects

6) A variety of models to meet your requirements
7) The world's top technology products are used for key components
8) Based on strong technical support and first-class technology, the truck quality is higher and more reliable
9) Competitive price.

SINOTRUK TX Model 6X4 25CBM Oil Tank Truck 10Wheels 336Hp White Two Warning Lights 0SINOTRUK TX Model 6X4 25CBM Oil Tank Truck 10Wheels 336Hp White Two Warning Lights 1
